Qinbo Modern30

A home that fits the way you live.

Home / Expandable Homes / Modern 40

Qinbo Modern 40

A home that fits the way you live.

An expandable home with a choice of two- or three-bedroom layouts. Personalise the finishes and fittings to suit your taste and everyday needs.

Size series

40 ft

Bedrooms

2–3

Fitted bathroom

1

Expanded footprint11.80 × 6.38 m
  • Galvanised steel frame with insulated wall and roof panels
  • Factory-installed wiring and plumbing

View floor plans

Quoted for your chosen configuration and destination port.

ExpandedLength × width × height

11,800 × 6,380 × 2,450 mm

Folded for transportLength × width × height

11,800 × 2,250 × 2,450 mm

Internal height

2,250 mm

Estimated net weight

Approx. 6,700 kg

Model reference

QH-M40

L × W × H = length × width × height. Confirm final dimensions for your configuration; packed shipping weight is confirmed separately.

Structure & fitted systems

Steel frame

Heavy-duty galvanised steel main and wing frames with an electrostatic spray finish.

Walls & roof

Insulated EPS metal sandwich panels.

Bathroom & services

Fitted bathroom, plus factory-installed electrical wiring and plumbing.

Make it yours

Your choices

Interior and exterior finishes, flooring, doors, windows and fittings.

Optional additions

Kitchen cabinets with quartz benchtop / countertop, sink and tap; veranda + pitched roof.

Photos show example configurations. Your quotation reflects your selections.

Explore finishes & options

Delivery

Sea shipping to your agreed destination port. Our usual port quotation includes sea freight and cargo insurance.

Typical timeframe

Approximately 9–16 weeksFrom deposit to arrival at your destination port, depending on production and the shipping route.

Setup guidance

Installation manuals and videos.

After-sales support

Customer service for your after-sales questions.

THE SPACE INSIDE

Find the layout that works for you.

Explore each floor plan at full size. Not sure which to choose? Tell us how you will use the space.

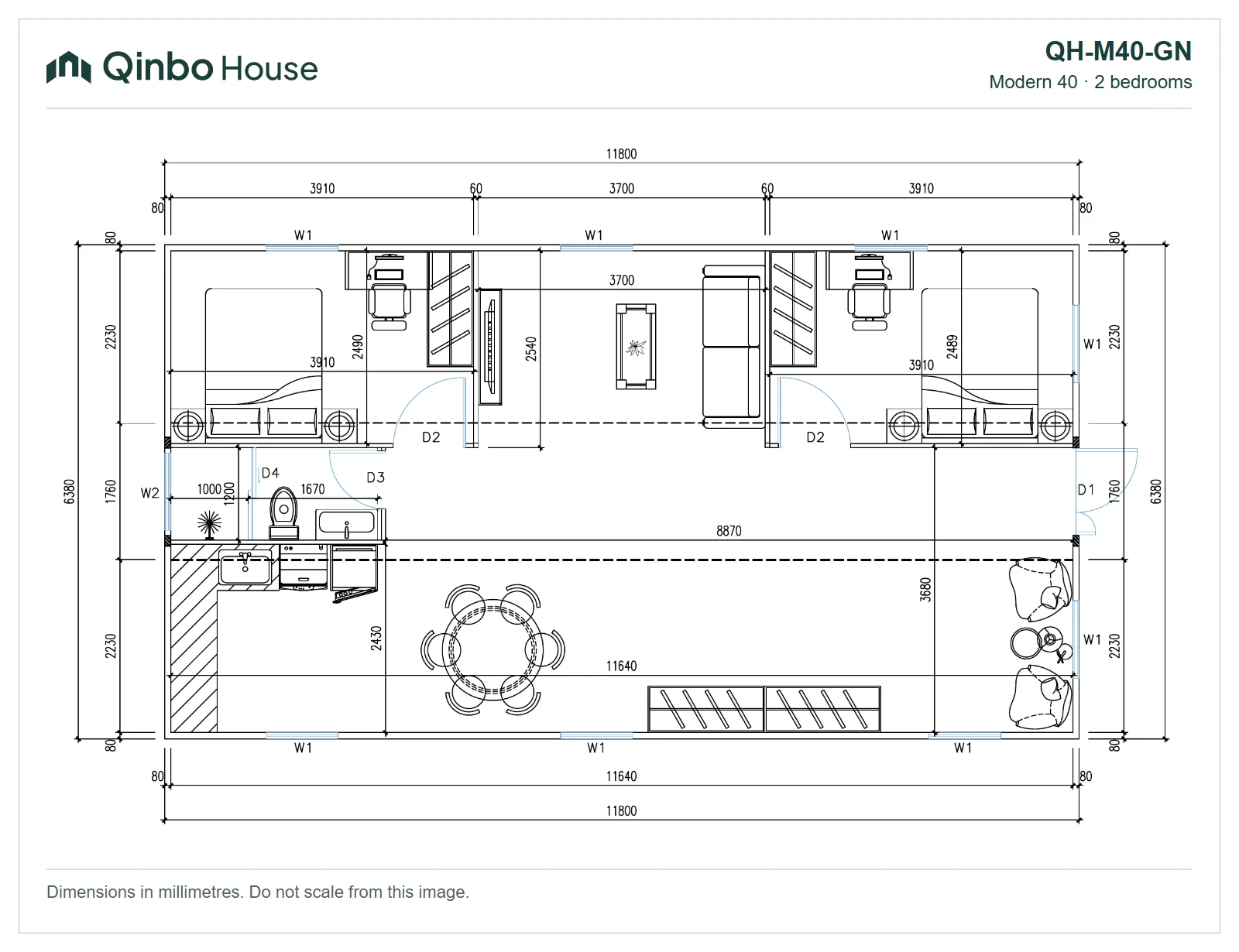

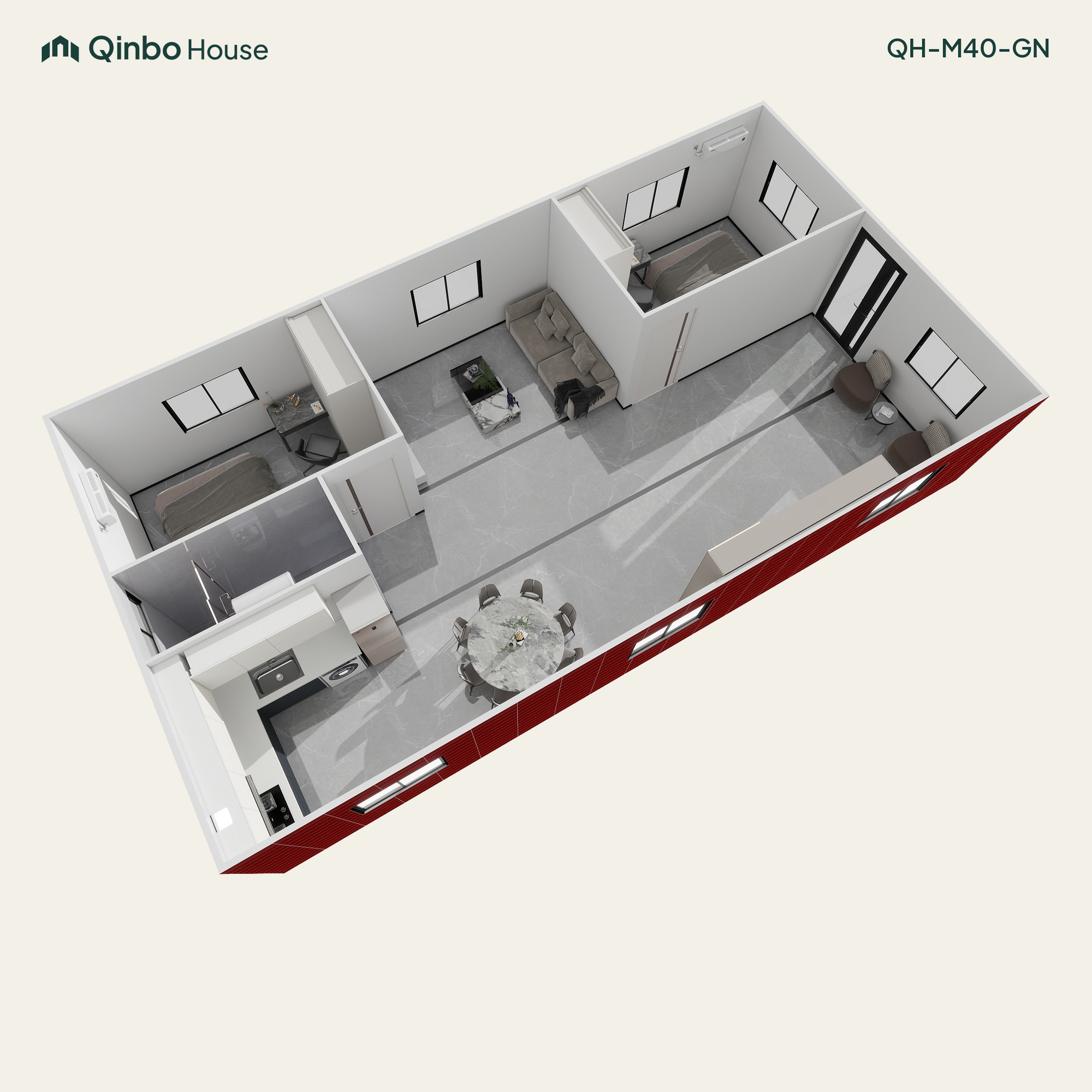

Qinbo Modern 40 2-bedroom 3D layout, opposite ends, with one bathroom and shared living and kitchen areas.

QH-M40-GN

2 bedrooms

Opposite ends

Two bedrooms at opposite ends, with a shared living and kitchen area and a separate bathroom.

2 bedrooms · 1 bathroom

View 2D floor plan

Room arrangement & dimensions

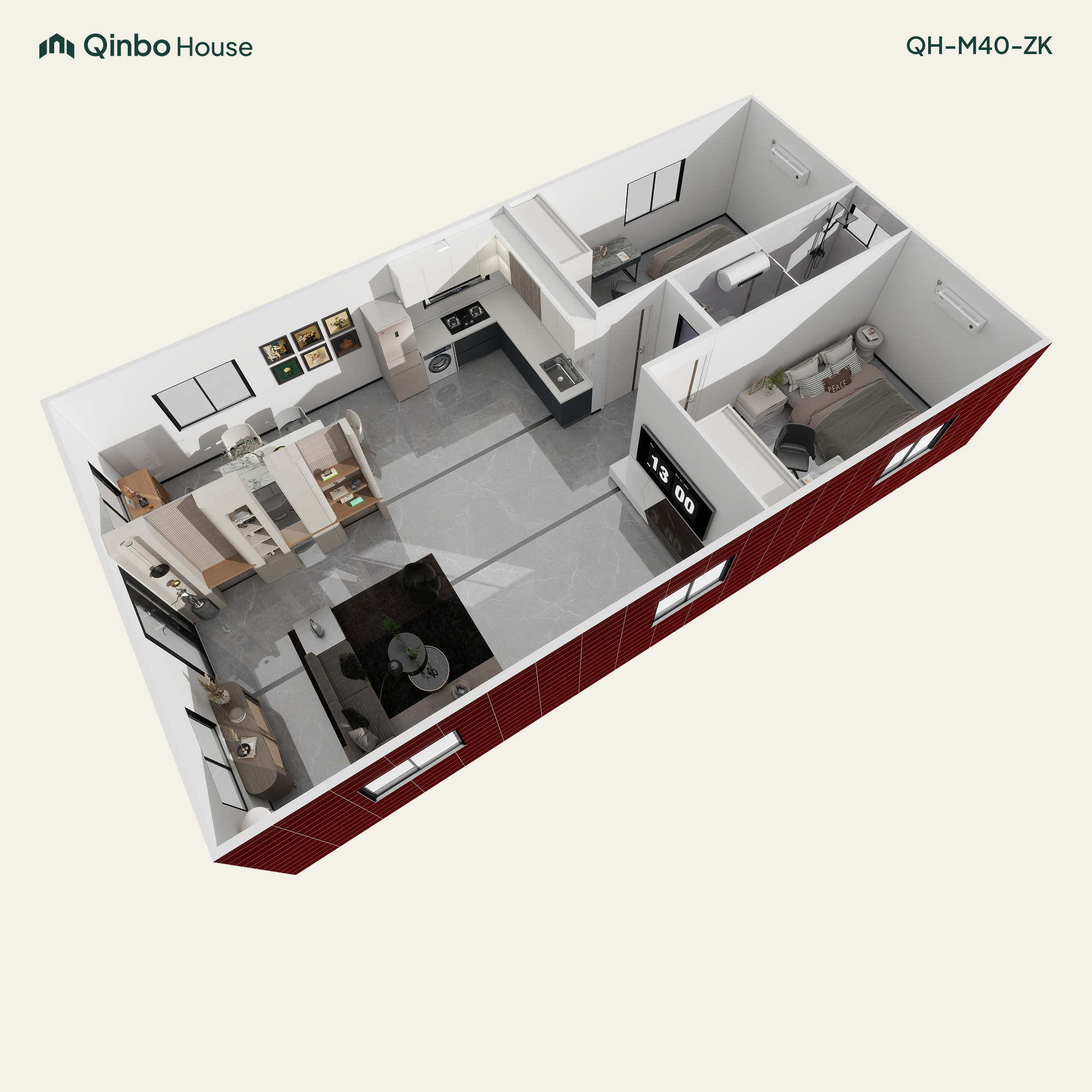

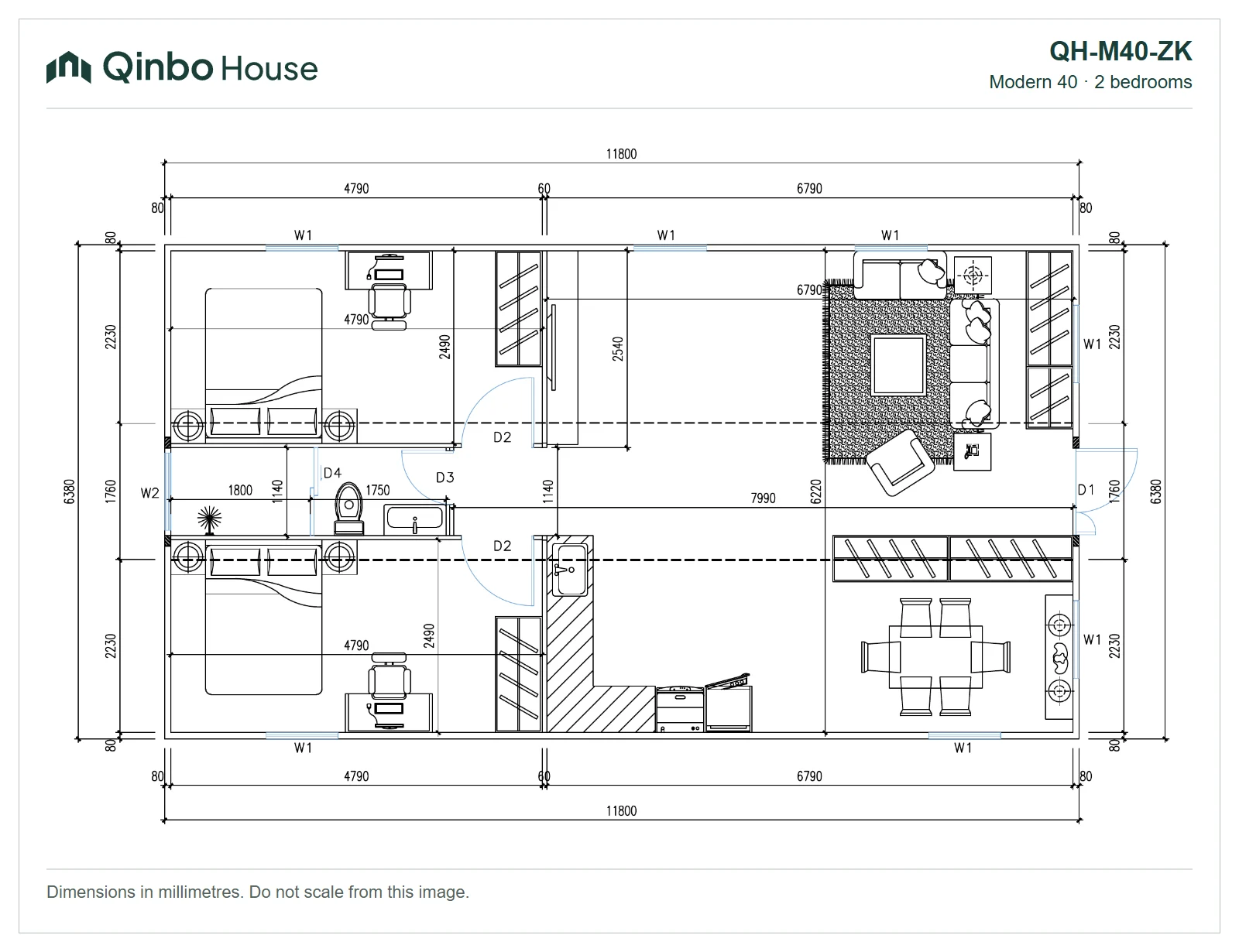

Qinbo Modern 40 2-bedroom 3D layout, together at one end, with one bathroom and shared living and kitchen areas.

QH-M40-ZK

2 bedrooms

Together at one end

Two bedrooms grouped at one end, with a bathroom between them and an open-plan living and kitchen area beyond.

2 bedrooms · 1 bathroom

View 2D floor plan

Room arrangement & dimensions

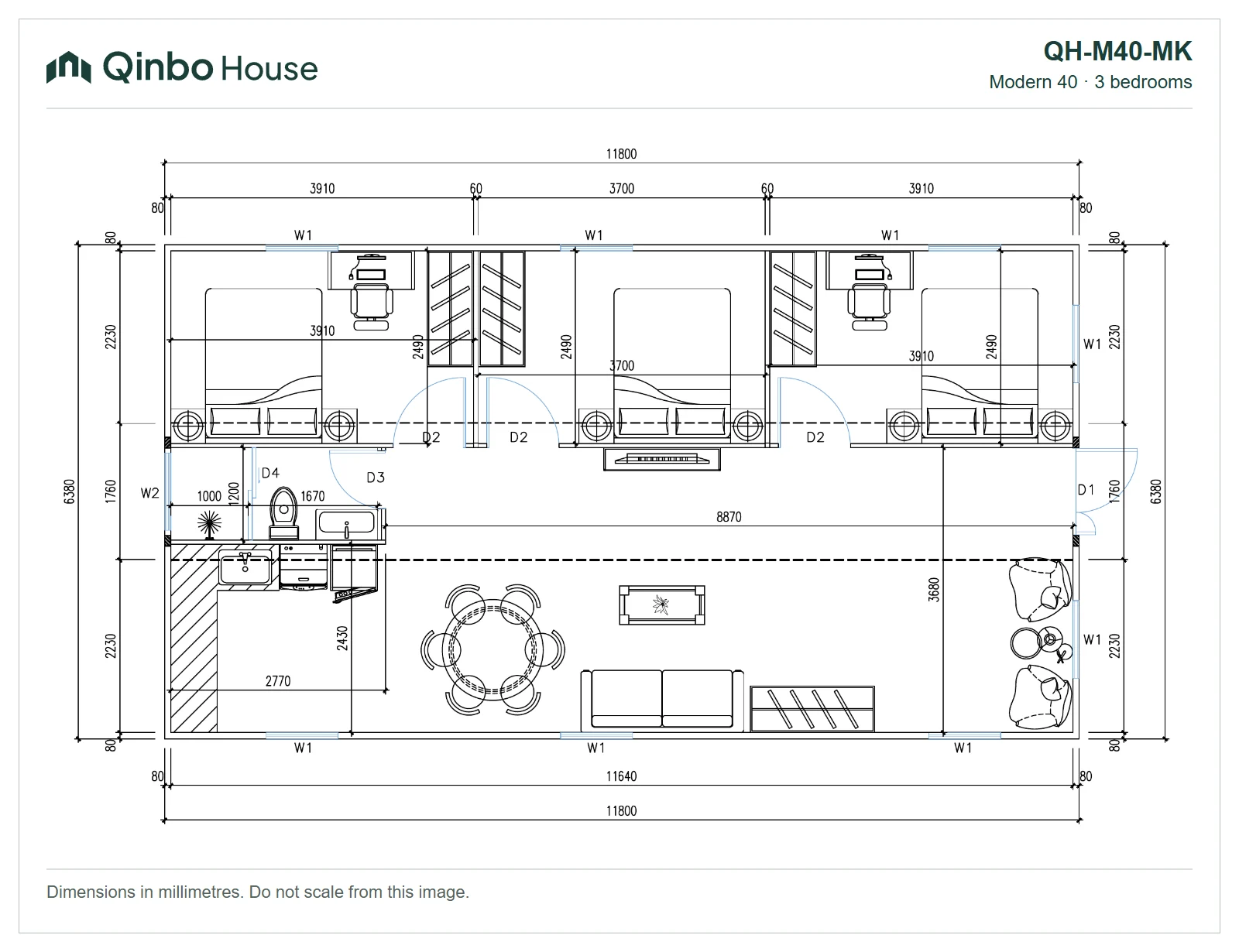

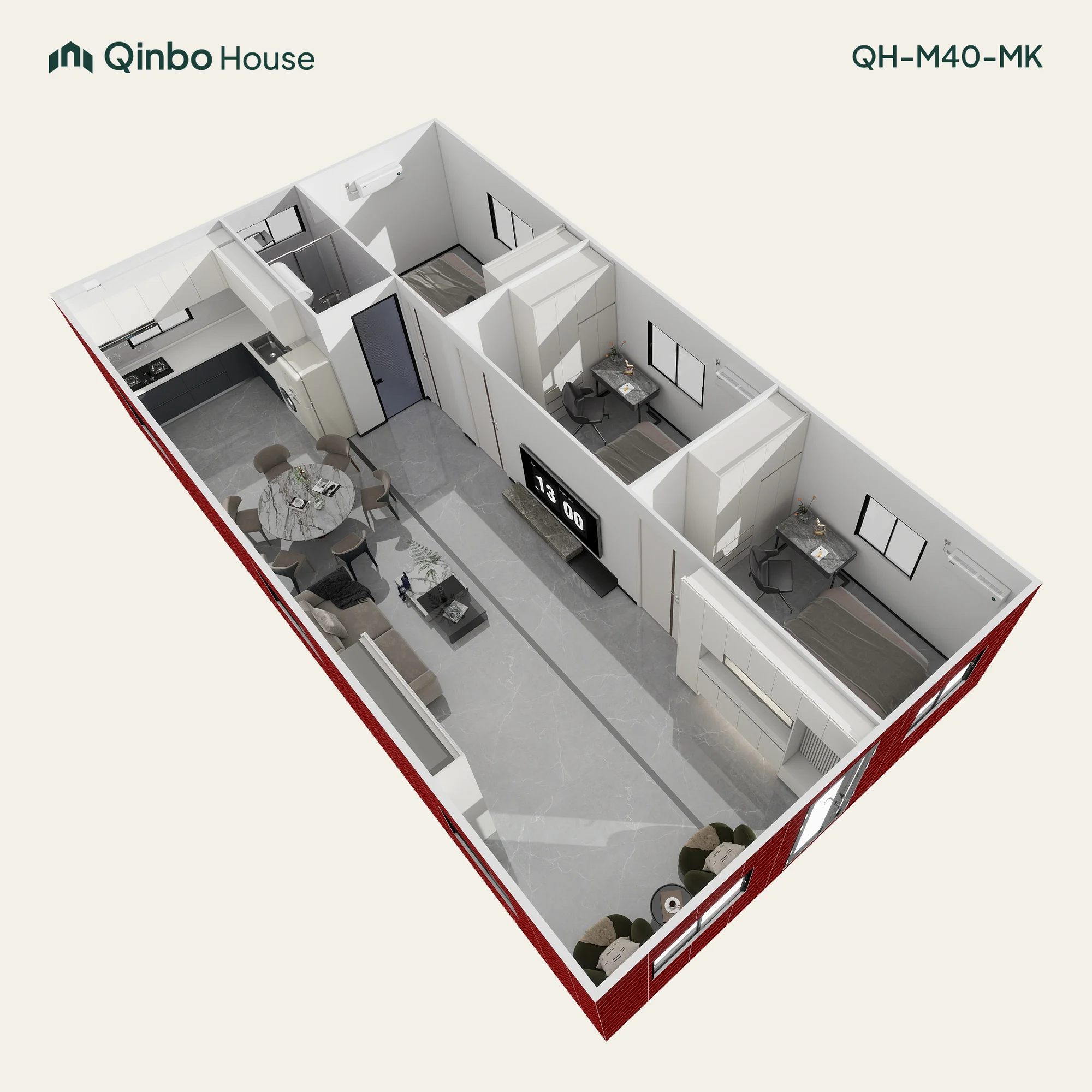

Qinbo Modern 40 3-bedroom 3D layout, along one side, with one bathroom and shared living and kitchen areas.

QH-M40-MK

3 bedrooms

Along one side

Three bedrooms along one side, with a separate bathroom and a shared living and kitchen area opposite.

3 bedrooms · 1 bathroom

View 2D floor plan

Room arrangement & dimensions

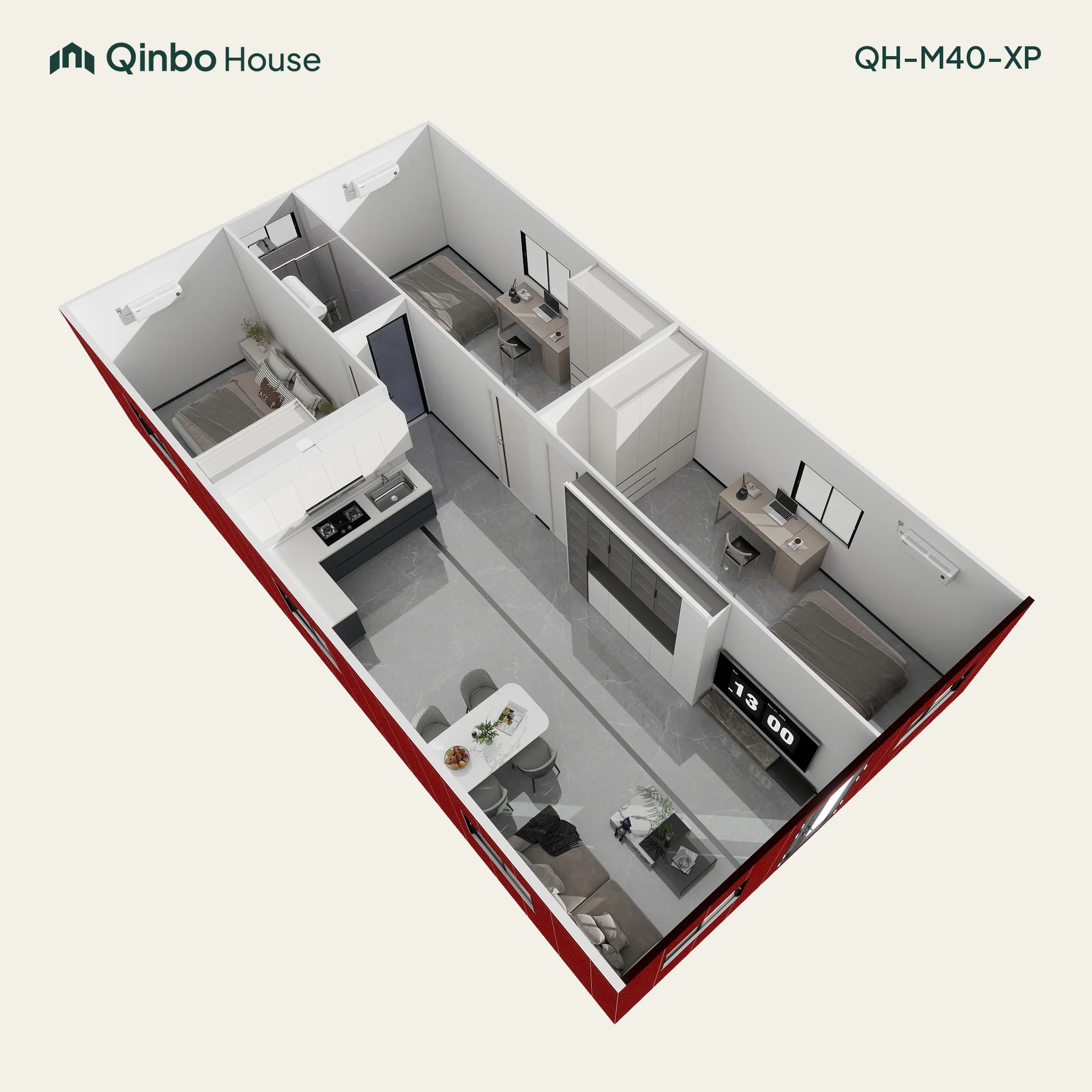

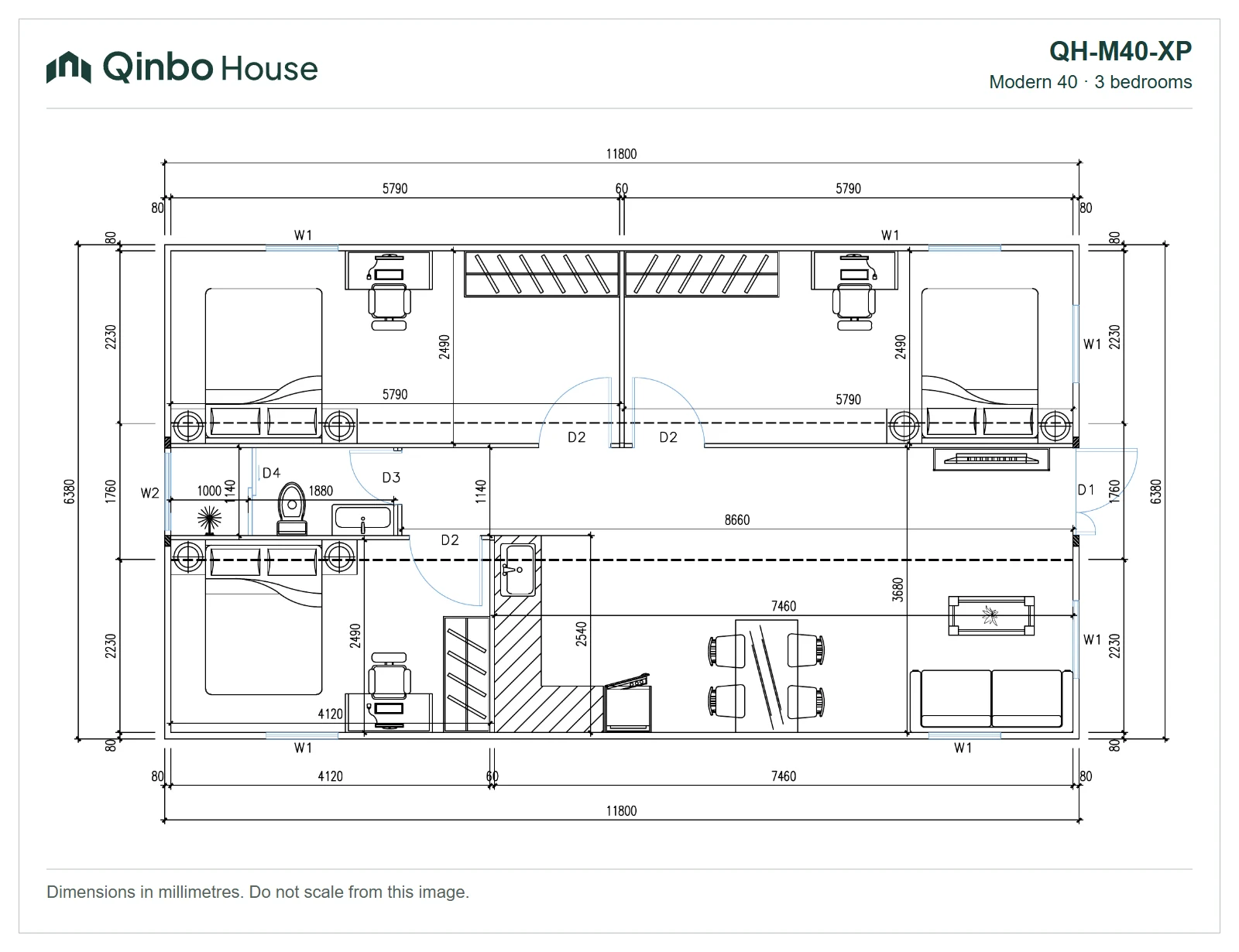

Qinbo Modern 40 3-bedroom 3D layout, on both sides, with one bathroom and shared living and kitchen areas.

QH-M40-XP

3 bedrooms

On both sides

Two bedrooms along one side and a third opposite, with a separate bathroom and an end entrance into the shared living and kitchen area.

3 bedrooms · 1 bathroom

View 2D floor plan

Room arrangement & dimensions

Layouts shown for reference. Furniture and appliances are not included; kitchen cabinetry is optional.

EXTERIOR & INTERIOR

Explore the home,
inside and out.

Look around the exterior, living spaces and interior details. Open any photo to browse the full collection.

Photos show different display configurations. Your selected layout and quotation confirm the finishes and included items.

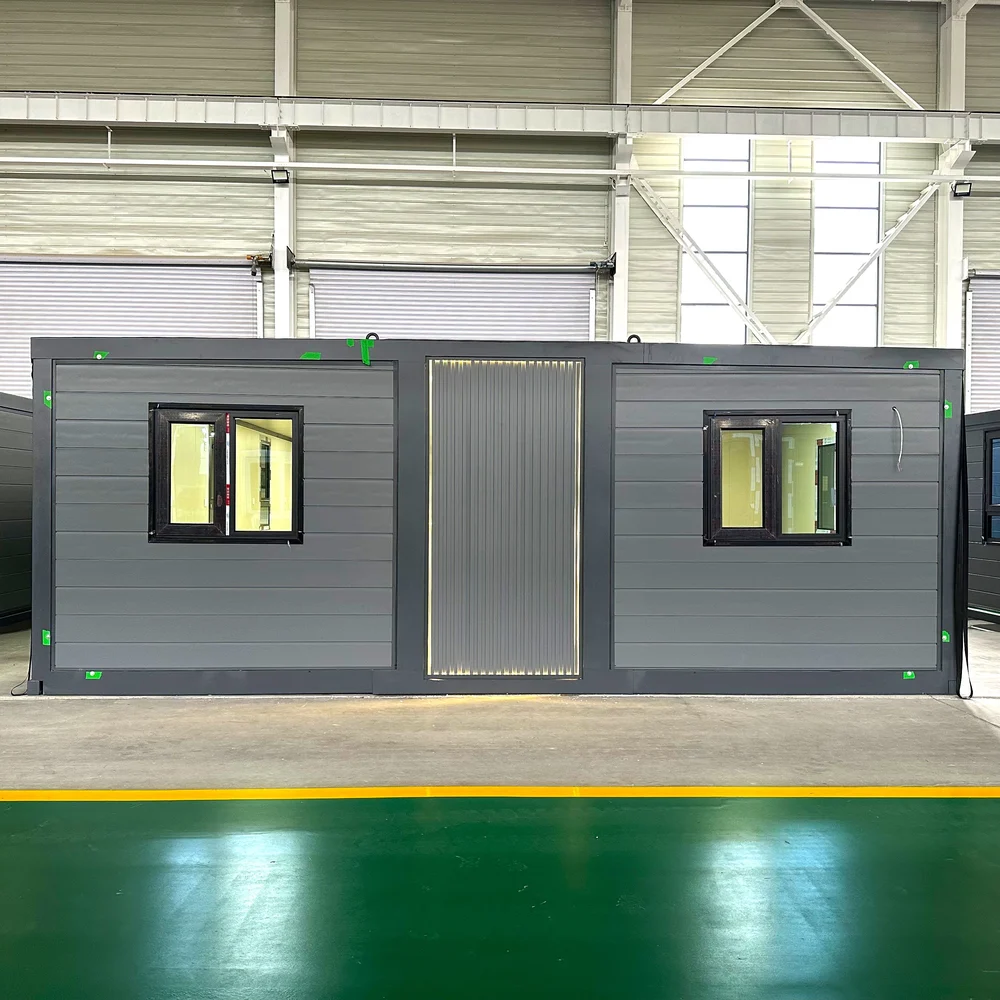

Grey front elevation with an illuminated entrance surround and dark-framed windows.

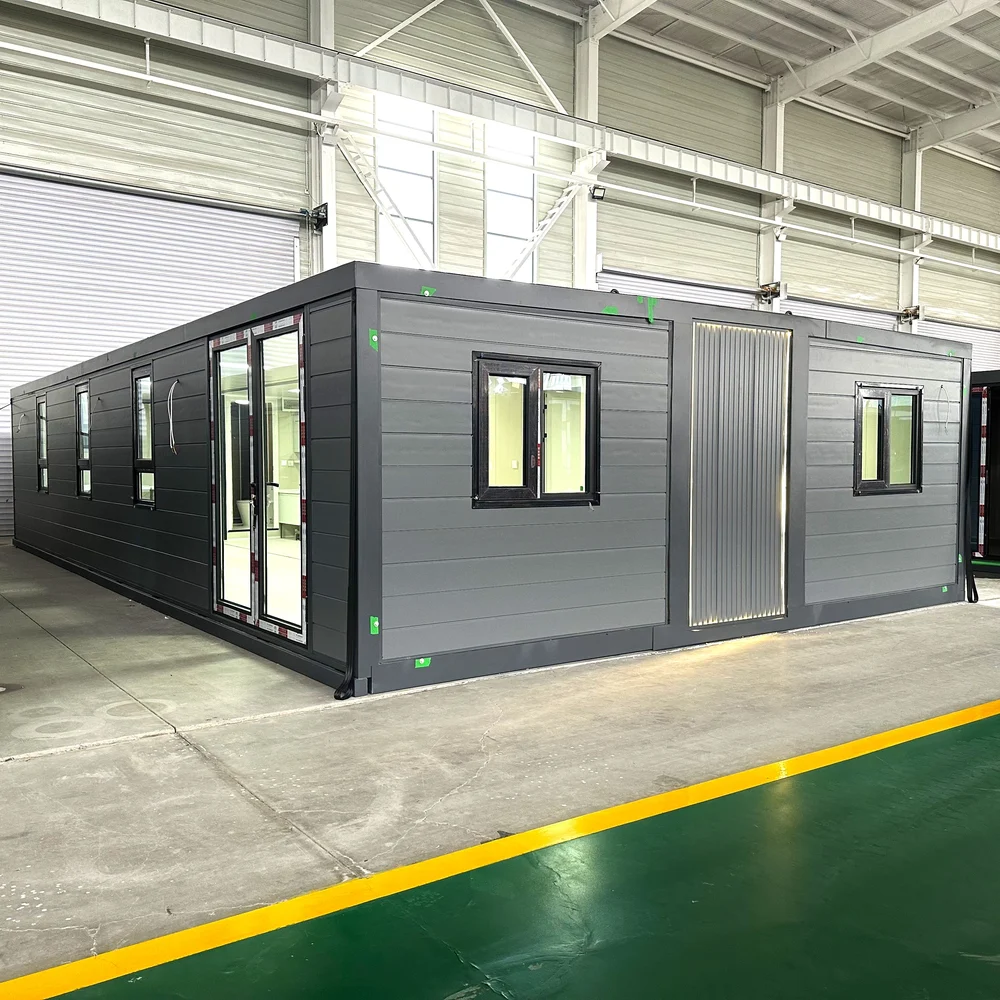

Grey expandable home with a glazed side entrance and an illuminated front door surround.

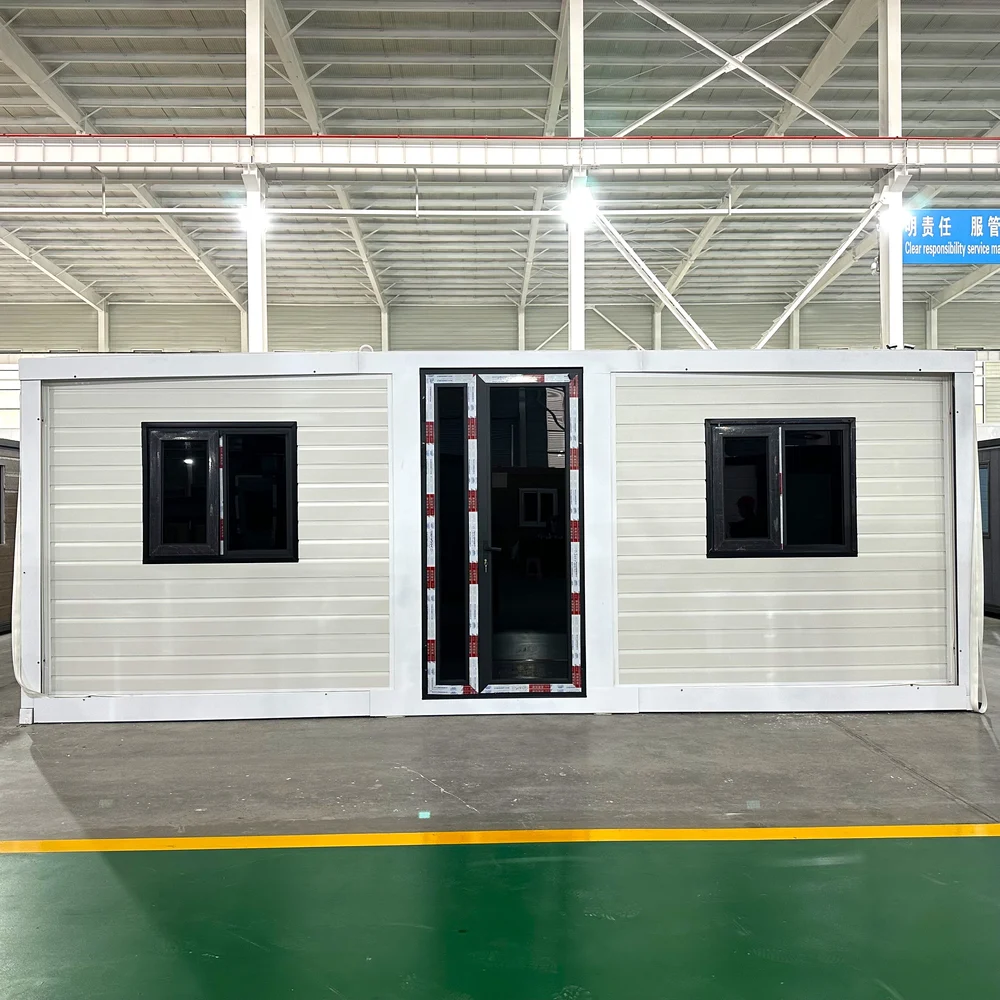

White front elevation with a central glazed entrance and dark-framed windows on either side.

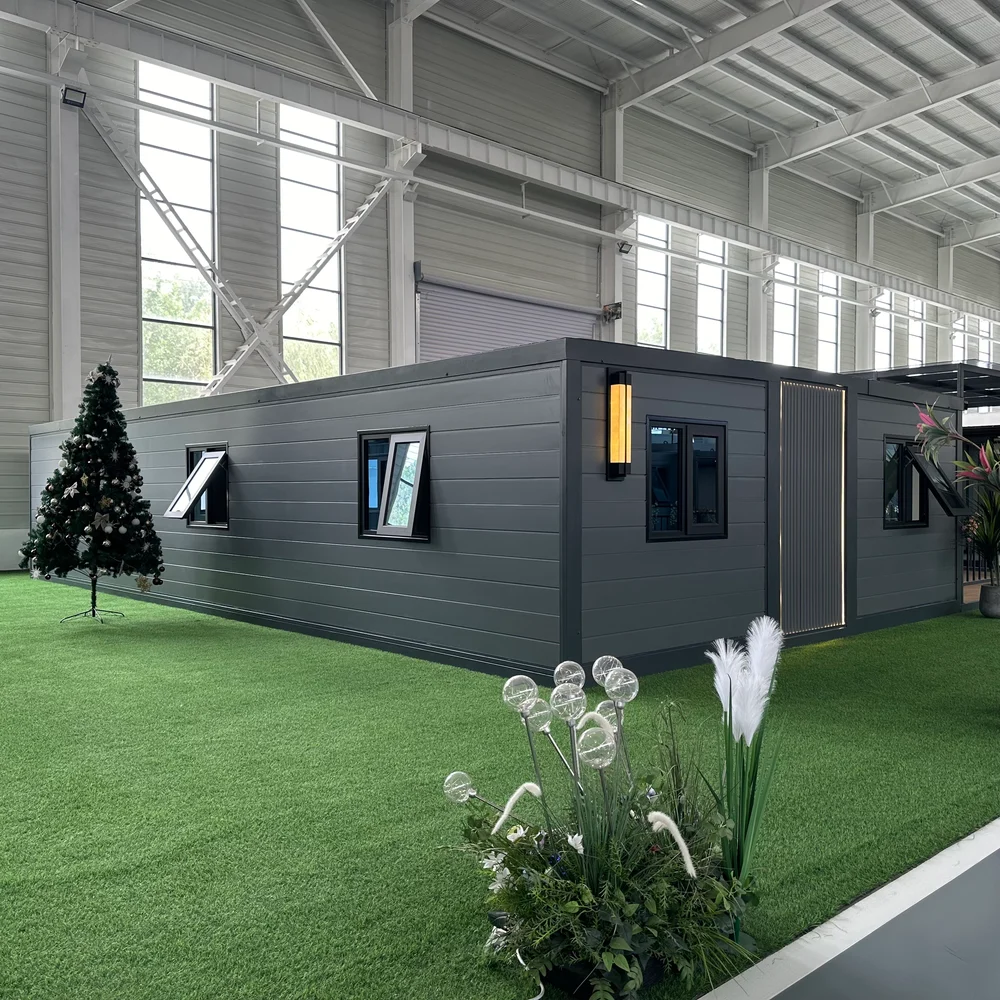

Grey display home with side windows, illuminated wall lights and a planted display area.

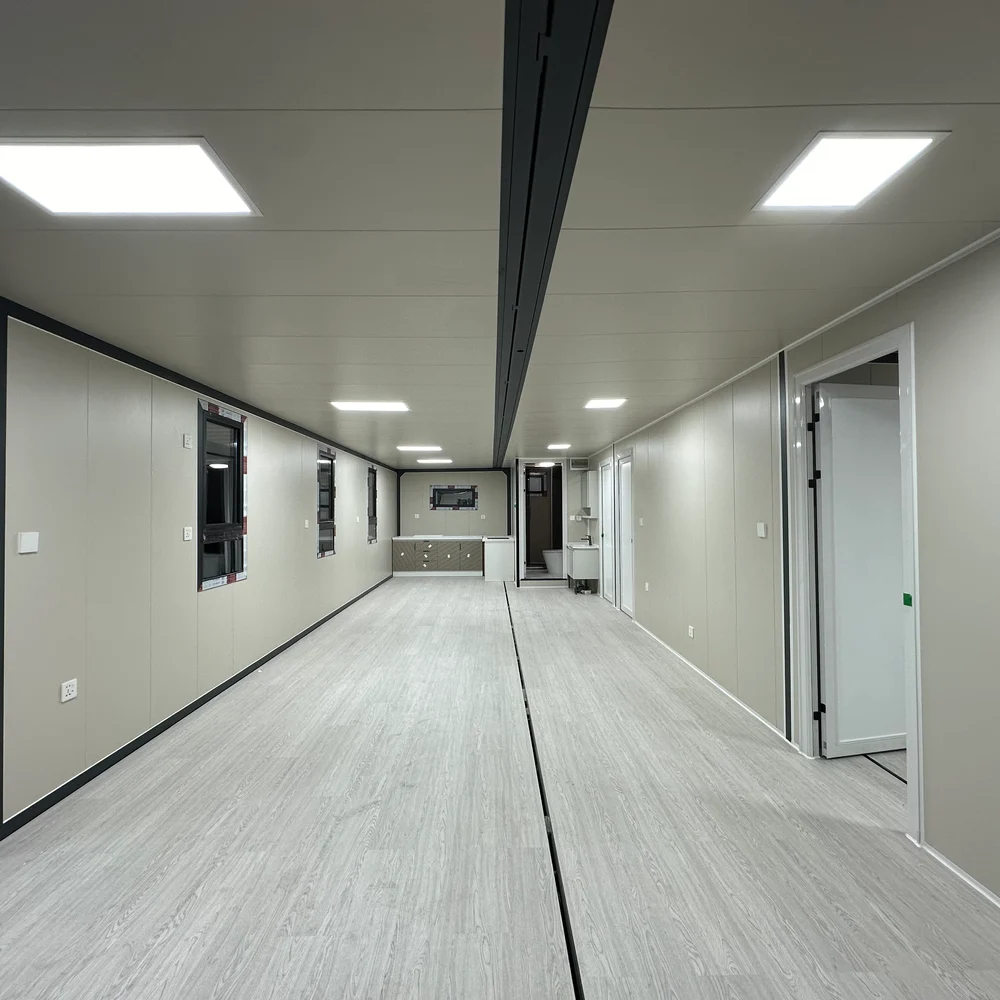

Long open interior with pale wood-look flooring, side windows and several doorways.

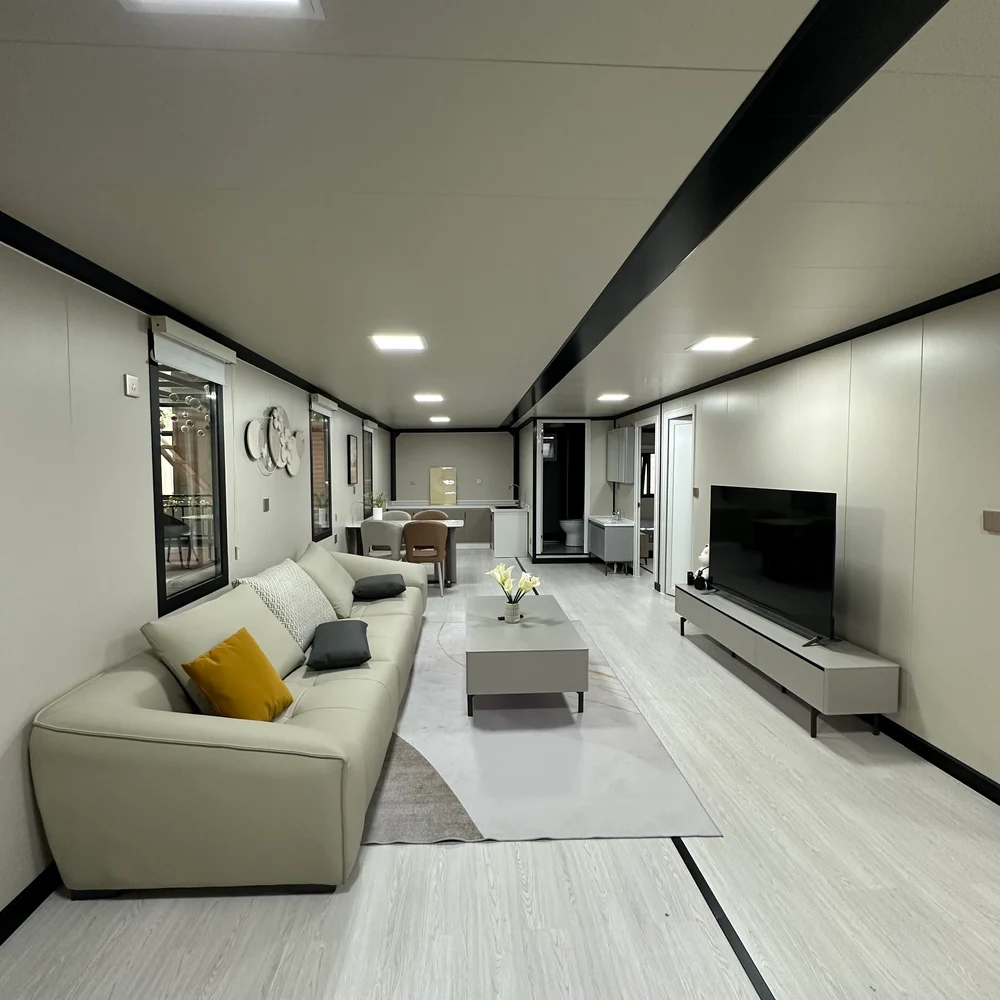

Furnished living area with a sofa, coffee table and television, looking towards the dining area.

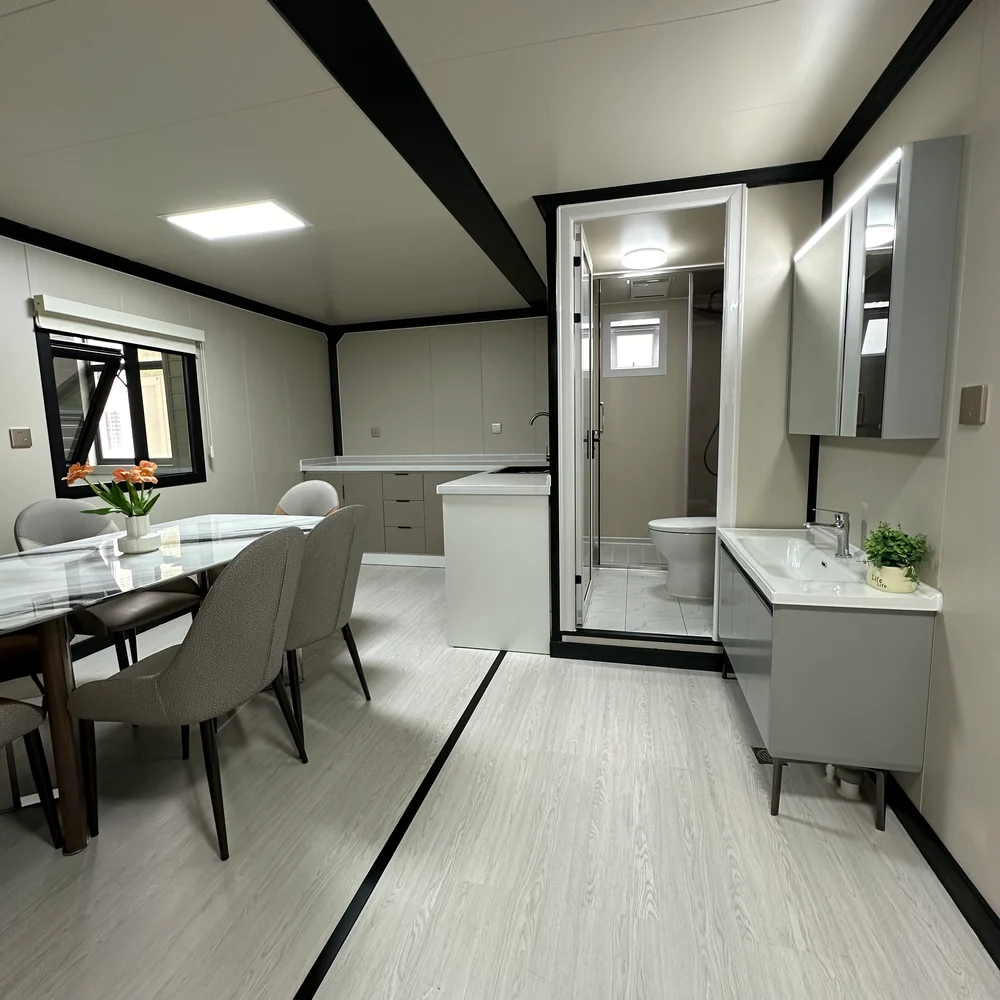

Dining area beside a basin cabinet, bathroom entrance and kitchen counter.

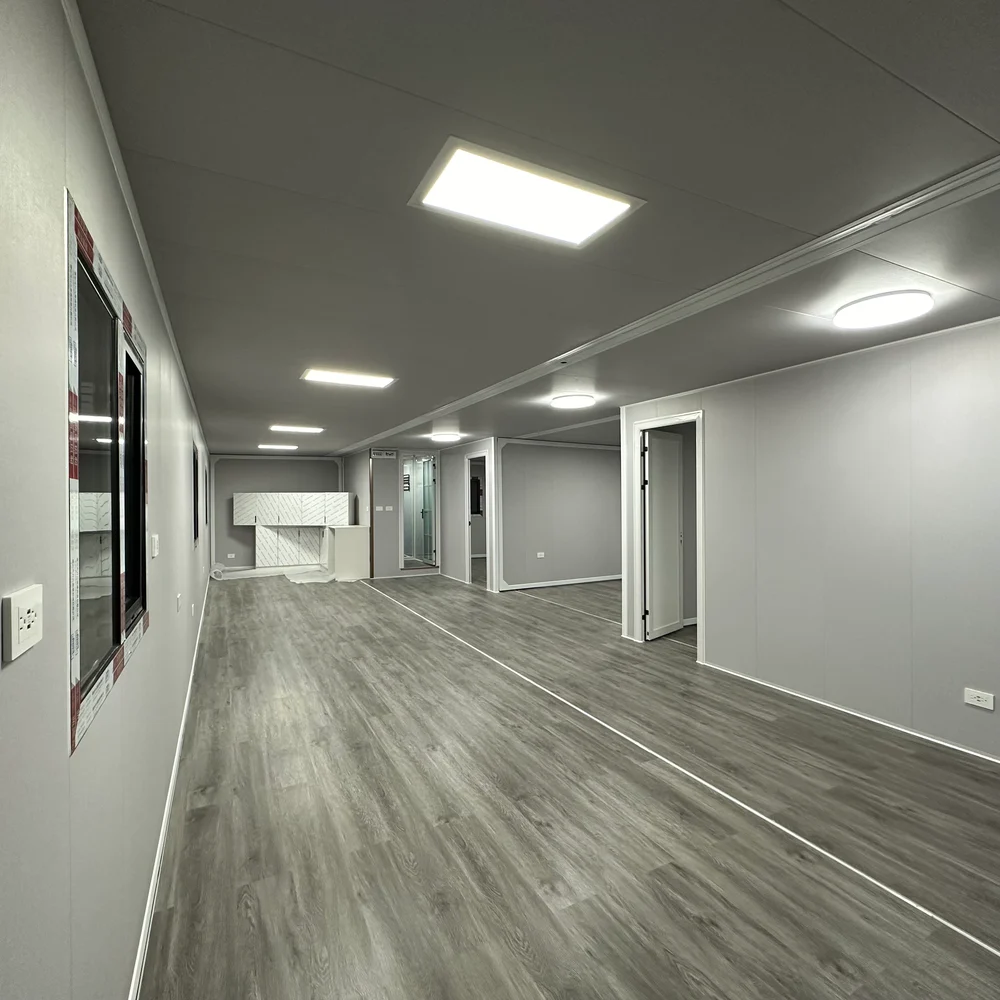

Open interior with grey wood-look flooring, a kitchen at the far end and doorways along one side.

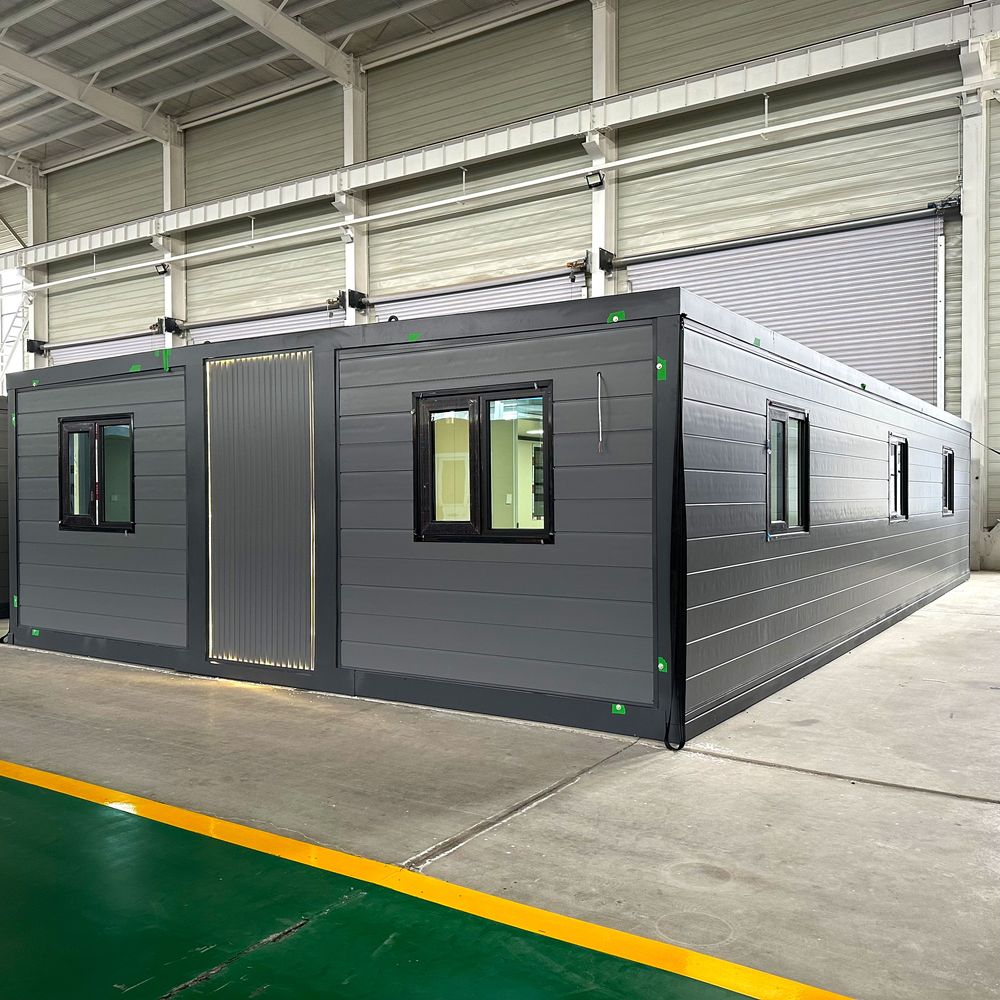

Grey expandable home with dark framing and several windows along its long side.

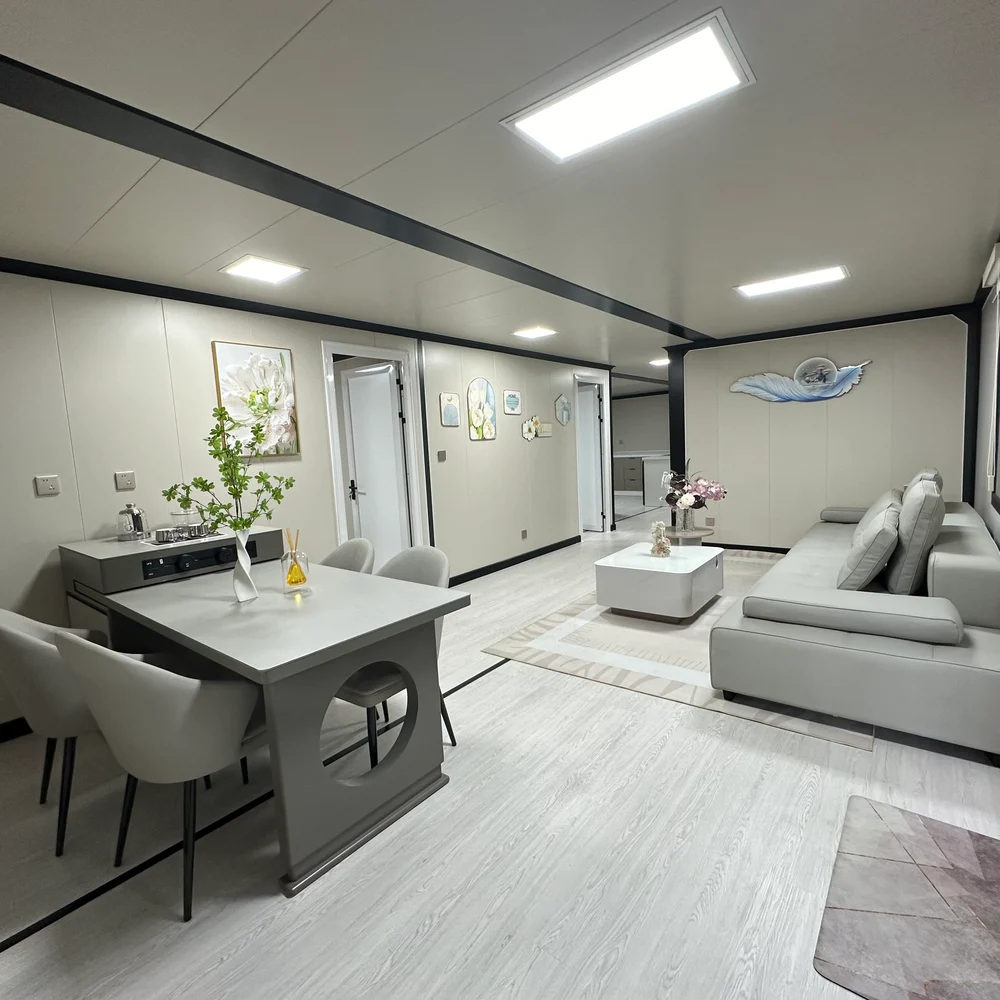

Furnished living and dining area with a sofa, dining table, cabinetry and light flooring.

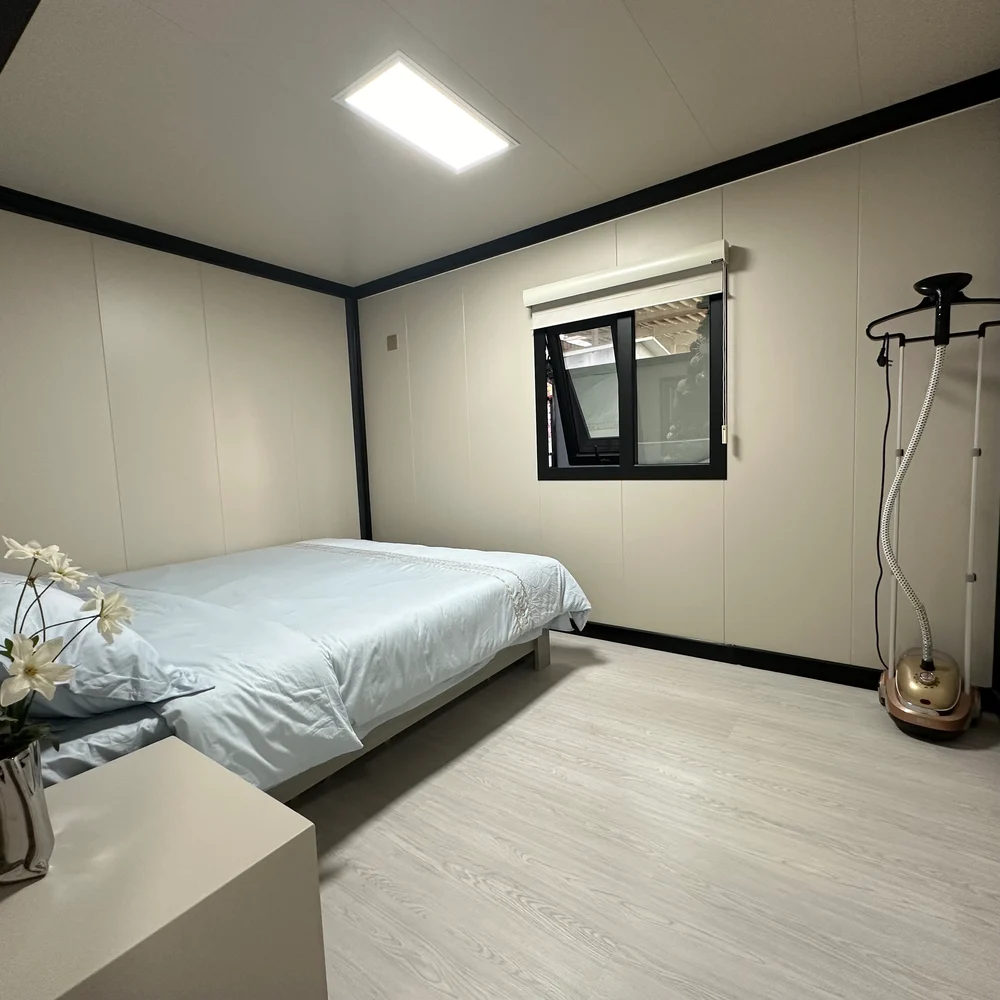

Bedroom with a bed beneath a dark-framed window and light wood-look flooring.

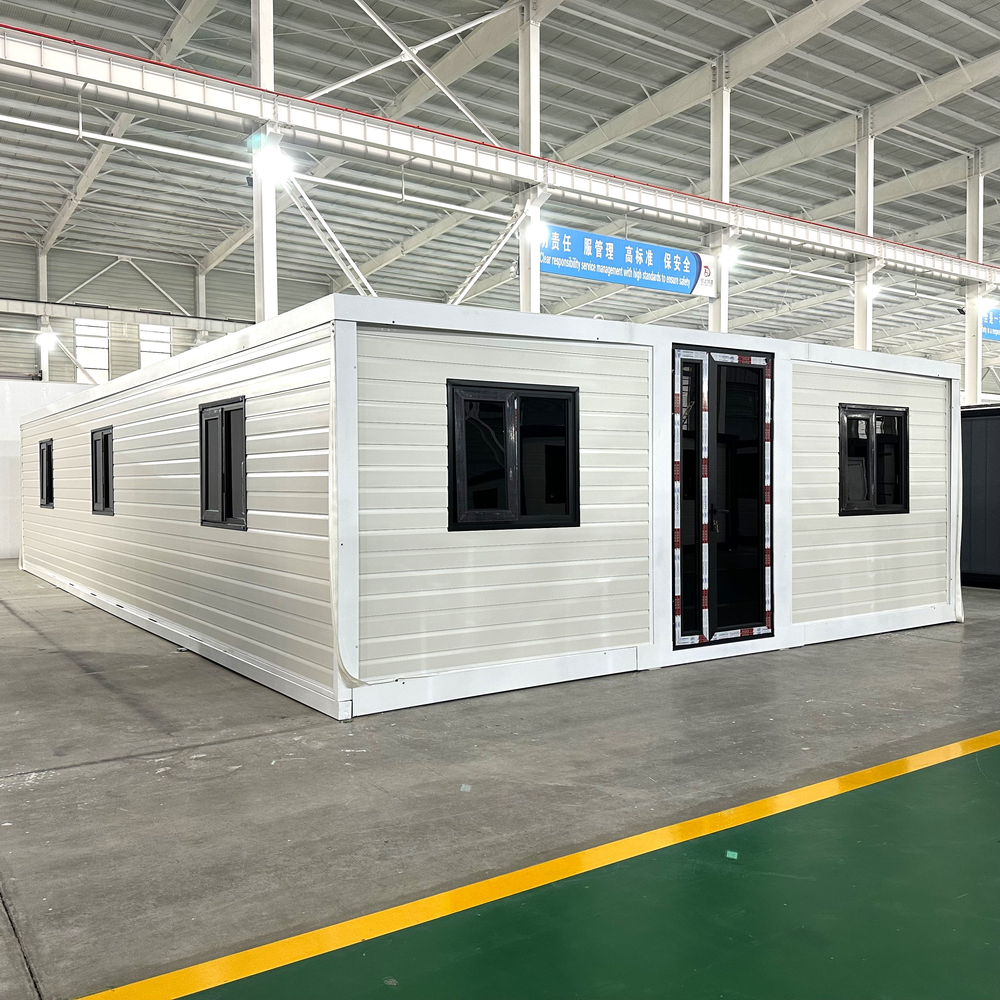

White expandable home showing the front entrance and windows along one side.

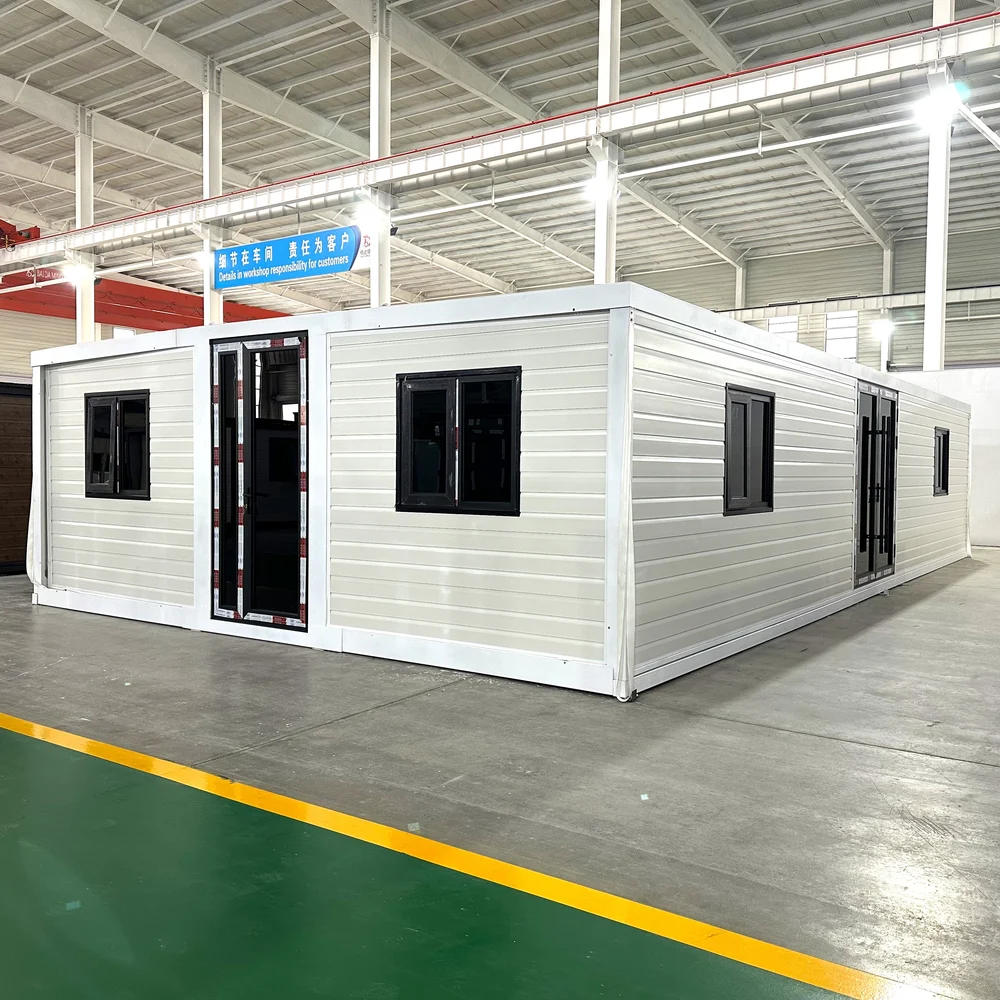

White expandable home showing the front entrance and the opposite side elevation.

Get pricing for the home you have in mind.

MATERIALS / FINISHES / OPTIONS

Make it your own.

Explore a selection of materials, finishes and fittings for your home. Find the look and details that feel right for you.

Explore the configuration guide

Core inclusions

Steel structure, wall and roof panels, flooring, doors and windows, a fitted bathroom, electrical wiring and plumbing.

Explore example configurations

Optional packages

Kitchen cabinetry with worktop, sink and tap; veranda with pitched roof.

See optional packages

Example configurations

A selection of materials, finishes and fittings shown across different configurations.

These photographs are examples, not a standard-inclusions checklist. Your quotation confirms the materials, finishes and fittings supplied.

Close-up of honey-brown woodgrain metal cladding and its horizontal panel joints.

Embossed metal cladding

Warm beige bamboo-wood fibre wall panels showing the surface and vertical joints.

Bamboo-wood wall panels

Light oak-effect SPC flooring sample with visible plank joints.

Wood-look SPC flooring

Regular-size dark aluminium window with one awning sash open outward.

Thermal-break awning windows

Dark-framed double hinged glazed entrance doors.

Thermal-break hinged entrance

White bedroom door with a black lever handle and keys in the lock.

Lockable bedroom doors

Close-up of a slim-frame bathroom door with reeded glass and a lever handle.

Slim-frame reeded-glass bathroom door

Mirrored bathroom storage cabinet above a washbasin.

Bathroom mirror cabinet

White washbasin and ribbed vanity cabinet with a black mixer tap.

Basin & vanity cabinet

White toilet beside a bathroom vanity and marble-effect wall panels.

Toilet

Black overhead and handheld shower fittings against marble-effect wall panels.

Shower fittings

Double switched power socket mounted on a light-coloured interior wall panel.

Power outlets — configured for your country

Blue external electrical inlet in a recessed white housing.

External power inlet

Round surface-mounted ceiling light in a finished expandable-home interior.

Ceiling lighting

Exterior waste, drainage, hot-water and water-inlet connections.

Plumbing connections

Complete expanded steel frame with exposed main and wing floor-support grids.

Galvanised frame & electrostatic finish

Optional packages

Added only when selected and included in your quotation. Photos show example package configurations.

Optional packages

Kitchen cabinetry

Kitchen cabinets come with a quartz benchtop / countertop, sink and tap. The cabinet arrangement is confirmed with your chosen layout.

Taupe kitchen base cabinets and drawers below a pale worktop.

Base cabinets

Warm grey kitchen wall cabinets with slim dark handles.

Wall cabinets

Close-up of a pale quartz kitchen worktop and its finished front edge.

Quartz benchtop / countertop

Close view of the kitchen sink and curved tap set into a pale worktop above base cabinets.

Sink & tap

The worktop, sink and tap form part of the kitchen package.

Optional packages

Veranda + pitched roof

Add a covered outdoor area and pitched roof to your selected configuration.

Expandable home with an uncovered deck, white railings and timber-look decking.

Deck with railings

Expandable home with a black-frame veranda, matching railings and a pitched canopy over the deck.

Veranda

Light-coloured expandable home with a black-frame veranda and pitched roof extending over the house and veranda.

Veranda & pitched roof

Wood-effect expandable home with a white-frame veranda and pitched roof extending over the house and veranda.

Veranda & pitched roof

Confirm the design and supply scope in your quotation.

Qinbo House configuration guide cover — Your home. In detail.

THE CONFIGURATION COLLECTION

More choices. Your combination.

Compare the full range of finishes, fittings and optional additions. Share the options you like when you request a quote.

PDF · 20 pages

CONSTRUCTION & QUALITY CHECKS

Care in every detail.

See the checks behind your home—from the steel frame and installed systems to the finish and packing.

We share production photos and videos, and you can arrange an independent inspection before shipping.

Caliper measuring the edge of a steel frame component.

Steel thickness measurement

Assembled galvanised steel house frame on the factory floor.

Frame assembly inspection

Close view of coated steel columns and cross-members in a folded house frame.

Electrostatic frame finish

Inspector reviewing the configuration checklist.

Configuration check

Inspector checking water and waste pipes in the floor frame.

Pipework inspection

Inspector checking wiring beside an interior wall panel.

Wiring inspection

Inspector checking exterior wall panels against a list.

Exterior panel inspection

Inspector opening an awning window.

Window operation check

Inspector checking an interior wall panel.

Interior panel inspection

Hand operating an entrance-door handle and lock.

Entrance door check

External house power inlet connected to test leads and a voltage converter with its indicator illuminated.

Power-on check

Inspector operating a switch beneath an illuminated ceiling light.

Electrical function check

Water-pressure testing equipment connected to the plumbing.

Water-pressure test

Worker inspecting the upper roof-to-wall joint.

Roof-joint inspection

Workers on a ladder checking corrugated metal roof sheeting while the wing is upright.

Roof-sheeting inspection

Water being sprayed over the roof of an expanded house.

Water-leak test

Inspector checking kitchen cabinet doors.

Cabinetry inspection

Completed exterior corner with cladding, window and glazed entrance fitted.

Completed-home inspection

Expandable home folded into its transport configuration.

Transport configuration check

Folded expandable home protected with white wrap for shipment.

Packing inspection

Examples from our factory inspections. Quality checks are carried out throughout production and before shipping, according to the configuration being produced.

USEFUL ANSWERS

Frequently asked questions.

A few things to know about choosing your home, shipping and support.

Have another question?

Tell us what you’d like to know. We’re here to help.

Ask us a question ↗

How do I get a price for this home?

Tell us your preferred model, layout, quantity and destination port. We will prepare an itemised quotation covering the home, your selected options, sea freight and cargo insurance. If you are still choosing a layout or finish, we can help you compare the options.

Furniture and appliances are not included with the home. If you need them, we can help source and purchase them on your behalf.

Yes. You can choose the floor plan, exterior wall finish, interior wall finish, frame colour and flooring. Door, window and bathroom options are also available. Use the configuration guide to compare them, or tell us the look and room arrangement you want.

Yes. Wiring and safety circuit breakers are installed at the factory, with 110V, 220V or 240V specified for your destination.

Yes. The home is plumbed at the factory, with hot and cold water inlets and separate greywater and waste outlets.

Each home undergoes rigorous quality inspections throughout production and before shipping, covering the frame, assembly, electrical and plumbing systems, waterproofing and packing. We share production photos and videos, and you can arrange an independent inspection before shipping.

We arrange sea shipping to your agreed destination port. The home travels in a shipping container with its side sections folded for transport. Sea freight and cargo insurance are included in our usual port quotation.

Allow approximately 9–16 weeks from deposit to arrival at your destination port:

  • Production: 4–7 weeks
  • Shipment preparation: 1–2 weeks
  • Sea transport: 4–7 weeks, depending on the destination

Yes. We offer wholesale pricing for multi-home orders. Send us your quantities and preferred models for a project quotation.

We provide installation manuals and videos to guide you through setup. Our customer service team is also available to help with after-sales questions.

GET IN TOUCH

Request a quote.

Tell us what you have in mind. We’ll help you explore the available options and prepare a quotation based on your requirements.

You don’t need to choose every detail to get in touch.

Prefer to contact us directly?

Email

[email protected]

Phone

+86 152 3365 2178

WhatsApp

Chat on WhatsApp

Where you plan to use the home.

Include your country code.

A bedroom count, preferred model, quantity or a question is enough.

MORE TO EXPLORE

Explore other models.

Compare a different size or exterior style to find the right fit.

20 ft

Wood-look expandable home viewed from the front-right corner, showing the glazed entrance and side windows.

20 ft · Modern

Qinbo Modern 20

1–2 bedrooms · 1 bathroom

5.90 × 6.38 m expanded footprint

Explore Modern 20

2 layouts

30 ft

Grey expandable home with a glazed entrance, dark framing and a long side elevation.

30 ft · Modern

Qinbo Modern 30

2–3 bedrooms · 1 bathroom

9.00 × 6.38 m expanded footprint

Explore Modern 30

3 layouts

40 ft

Dark wood-look exterior with a tall entrance and windows along the long side.

40 ft · Classic

Qinbo Classic 40

2–3 bedrooms · 1 bathroom

11.80 × 6.30 m expanded footprint

Explore Classic 40

4 layouts

View all expandable homes
